HORIZONTAL TRANSPORT TRACK / SLIDING RAIL / CHAIN

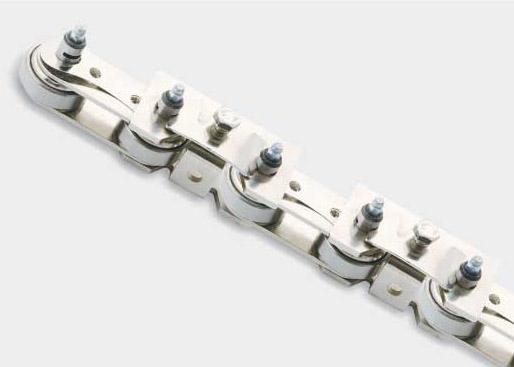

HORIZONTAL CHAIN
- SPECIAL LONG-TERM LUBRICATED ROLLER BEARING CHAIN (REQUIRES LUBRICATION ONCE A YEAR OR EVEN LATER) CHAIN WITH FULLY ENCAPSULATED BALL BEARINGS AVAILABLE AS PIN CHAIN, CLIP CHAIN AND COMBINED PIN & CLIP CHAIN DESIGN.
- PIN CHAIN WITH FABRIC PROTECTION FLAP CAN BE SUPPLIED ON REQUEST FOR KNITTED FABRIC.
- OIL CUPS TOTALLY ELIMINATED HENCE NO POSSIBILITY OF FABRIC STAINING & DRIPPING.
- INDIVIDUALLY DRIVEN MAIN CHAIN WITH DIRECT DRIVE FOR LH & RH SIDE.

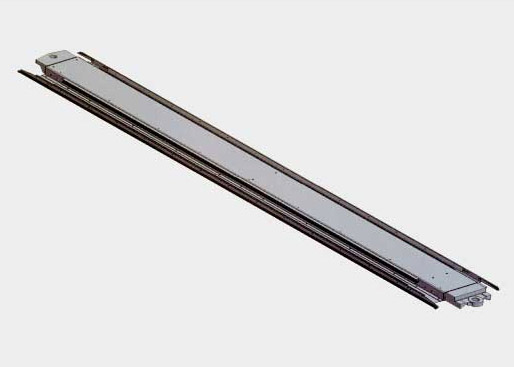

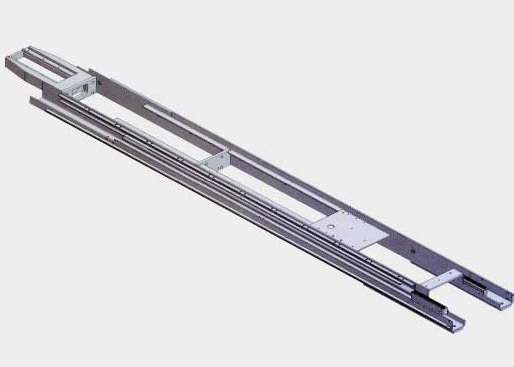

TRACK / SLIDING RAIL
- STEEL FABRICATED TRACK WITH GRAPHITE RAIL.
- SPECIAL SHOCK ABSORBERS ARE PROVIDED FOR SMOOTH TURNING OF THE CHAIN.
- LESS FRICTION AS GRAPHITE IS SELF LUBRICATING MATERIAL.
- SPECIAL CHAIN AND TRACK DESIGN LEADS TO RUNNING SPEEDS UP TO 150 M / MIN.
- HIGHER CROSS TENSION CAN BE APPLIED TO FABRIC COMPARED TO TRADITIONAL CHAIN.
- HIGHER FABRIC STRETCH IS POSSIBLE.
BENEFITS
- LOW MAINTENANCE, FREE FROM OIL SPILLAGE AND HIGHER SPEED.
- SIGNIFICANT ENERGY SAVING DUE TO ROLLING CHAIN AND GRAPHITE RAIL (LESS FRICTION)
